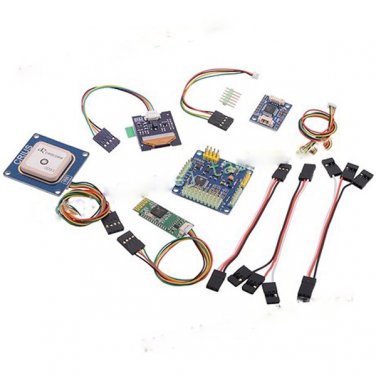

CRIUS MWC MultiWii SE V2.5 Control Board W/GPS NAVModuleComboCrius MWC MultiWii SE V2.5 flight controller boardFeatures:• Small size,35x35mm mounting holes• 6 PWM input channels for standard receiver or PPM SUM receiver• Up to 8-axis motor output• Supported 2-axis gimbal and auto trigger controll• FTDI/UART port for upload firmware, debug, Bluetooth module or LCD display• I2C port for extend sensor, I2C LCD/OLED display or I2C-GPS NAV board for GPS and Sonar• Ultra low noise 3.3V LDO voltage regulator• ATMega 328P Microcontroller• MPU6050C 6 axis gyro/accel with Motion Processing Unit• HMC5883L 3-axis digital magnetometer• BMP085 digital pressure sensor• PCA9306DP1 logic level converterOther:• Dimension: 40mmX40mm• Height: 11.6mm• Weight: 9.3g• Fixing hole spacing: 35mm (It can be changed to 45mm by CRIUS Distribution Board)• Hole diameter: 3.1mmNEO-6M GPS ModuleFeature:•U-blox NEO-6M GPS module•5Hz update rate•32k I2C EEPROM for save configuration•Build in 25 x 25 x 4mm ceramic patch antenna•LNA and SAW chip•3.3V LDO low noise regulator•UART (TTL) port with EMI protection•3V lithium Rechargeable battery•Power and fix indicator LEDs•Reverse polarity protection for input powerDefault parameter:•Standard NMEA protocol•Baud rate : 9600•Nav rate : 1Hz•TIMEPULSE (fix LED) rate : 1HzOther:•Dimension: 40 x 40 x 9mm•Weight: 16.4g/18.6g (include cable)•Hole diameter: 3.1mmI2C-GPS NAV ModuleFeatures:·All GPS data available via the I2C bus to connect to 328P Multiwii FC·A LED on board show GPS 3D Fix status·ATMega 328P Microcontroller·2 Molex 1.25mm 4Pin socket for GPS receiver and FC·2 port for ISP and FTDIOther:·Dimension: 20mmX30mm·Height: 5mm·Weight:2.4g/5g(include cable)·Hole diameter: 3mm MWC Multiwii Bluetooth parameter debug module / Bluetooth adapterFeatures:·For Multiwii FC Configuration use with Android MultiWiiConfiguration·UART TTL socket◆MultiWiiConfiguration function·Read and Write PID·Setting switch for AUX1 and AUX2·Monitor receiver signal and FC output signal·Monitor All sensors and GPS signal·Cablibration Magnetometer and Accelerometer·Save and read profile◆Default parameter:·Baudrate : 115200·Module name : CRIUS_BT·Pair code : 0000◆Other:·Dimension: 15mmX37.5mm·Height: 5mm·Weight:2.2g/3.9g(include cable)·Hole diameter: 3mmCRIUS CO-16 OLED Display ModuleFeatures:- High brightness, self-emission, high contrast ratio- monochrome 128×64 dot- 5V I2C interface- Used for telemetry and debug MultiWii FC.- Dimension: 27mmX27mm- Height: 6.5mm- Weight:3.7g/4.9g(include cable)Package Includes:1x MWC V2.5 SE Flight Control board1x I2C-GPS NAV Module1x NEO-6M GPS Module1x CO-16 OLED Display Module1x Bluetooth module evrika33 store
