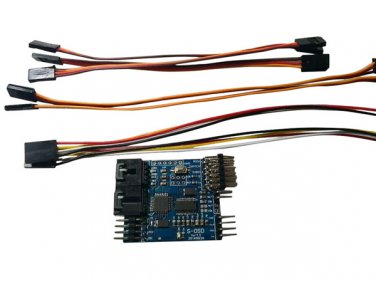

S-OSD iOSD Remzibi OSD Module for DJI NAZA Lite/V2 GPS vs N-OSDDescription:Item name: S-OSD ModuleSize: 4.3cm x 3.8cmDynamic voltage detection: 3S-6SGPS Module and LED module connection:1. GPS and LED: Use 4P-4P connect main controller GPS port and LED port, supply power to flight controller. If S-OSD power light lits, then it is right.2. Then plug GPS module and LED module at S-OSD port.3. Switch port: The function of switch port is screen switch. There are plenty of contents S-OSD will display, so need two screens display. One time one screen content. The screen switched by transmitter 3-step switch through switch port.4. Throttle channel: S-OSD could display throttle channel signal data from 0%-100%. Two THRO port on S-OSD, one connects receiver throttle, the other connects flight controller.5. Attitude cable: connects with flight controller f1/f26. RSSI: S-OSD could display receivers signal strength, this port is used to connect receivers RSSI port7. Voltage detection function: wiring as picture shows8. Video port: wiring as picture showsFeatures:Compatible with ordinary OSD display functionAdded function: Flight mode, Flight attitude, throttle channel signal data(0%-100%), receiver signal strength(if receiver with RSSI function), screen switch function(dual screen display)Note:Suit to senior player.Players can share GPS data that from flight controller to this S-OSD, but this may disturb the flight controller, we won't be responsible for any risks.Package included:1 x S-OSD1 x 3P(10cm) switch thro T connect signal line1 x 3P(15cm) F1 F2 connect signal line1 x 4P(20cm) LED GPS connect signal line<img src="http://ti2.auctiva.com/web/aswCredit.gif" border="0"><br><a href="http://www.auctiva.com/?how=scLnk1" target="_blank"><img src="http://ti2.auctiva.com/images/sc1line1.gif" border="0"></a> <div style="text-align:center"><img src="http://ti2.auctiva.com/sw/java.gif" border="0"><br><table align="center"><tr><td height="28px" valign="middle" align="center"><font face="arial" size="2"><b><a href="http://emporium.auctiva.com/evrika33" target="_blank">evrika33 store</a></b></font></td><td><a style="text-decoration:none" href="http://emporium.auctiva.com/evrika33" target="_blank"><img src="http://ti2.auctiva.com/sw/thumbgallery.gif" border="0"></a></td></tr></table></div>
